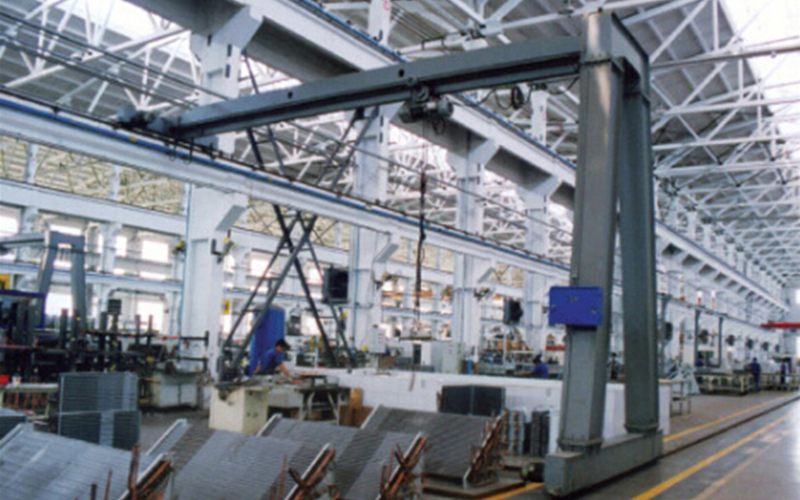

MBH型電動葫蘆門式起重機

MBH型電動葫蘆半門式起重機依據JB／T5663標準所設計、制造；本產品大車運行軌道一條鋪設在車間吊車梁上，另?xiàng)l鋪設在地面上，是種有軌道運行的中小型半門式起重機，適用于加工車間、料場、貨場、裝卸和搬運物料。
本產品起重量為0.5～10t，其跨度、上下軌道高低差接用戶需要而確定，工作級別般為A3～A5級。
本機特點：
1.本產品主要由主梁、兩支腿、上、下橫梁，大車?運行機構、電動葫蘆及電器部分所組成。
2.主梁、支腿、上下橫粱均采用箱型板結構，電動葫蘆在主梁工字鋼下冀緣板上運行。
3.大車運行機構采用“三合一”減速器，上、下分別驅動，可采用變頻調速。
4.操縱方式有地面手把按鈕操縱、地面遙控或司機室操縱，三種方式可選用。

????MBH semi-gantry crane，based on JB/T5663 standard, is a middle-sized semi-gantry crane and has two tracks with different height .?One is on the top of crane"s supporting beam，the other is on the ground. ?It is applicable to work in processing workshops and storage yards,?mining plants and so on.
??? The range of lifting capacity is 0.5～l0t ,span and height is flexible, classilication group is A3～A5.

Main features：
??? 1. The crane is mainly composed of girder, two legs, upper? travelling mechanism, lower travelling mechanism, electric?hoist and? electrical?system.
??? 2. Main frames are boxed. Electric hoist is traversing on the?I-beam track.
??? 3. Travelling mechanisms adopt "three in one "?reducer，which is driven respectively, it adopts variable? frequency for speed adjustment.
??? 4. Three type of manipulation for choice：ground wired button?control, remote control or cab"s.

?
