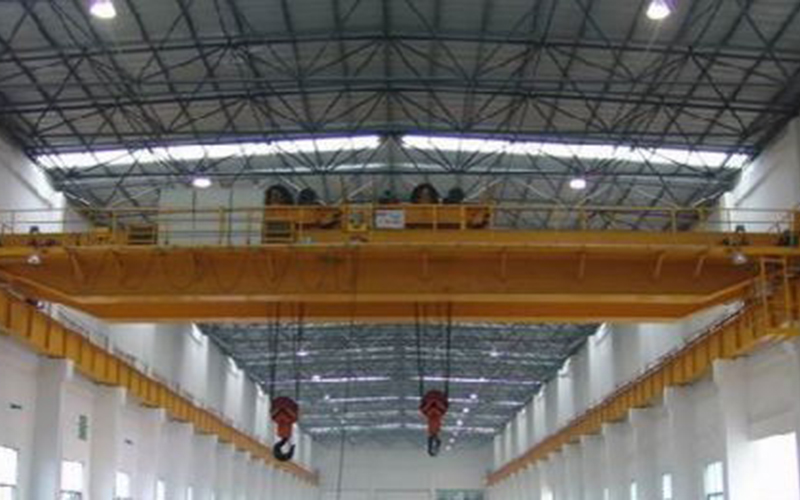

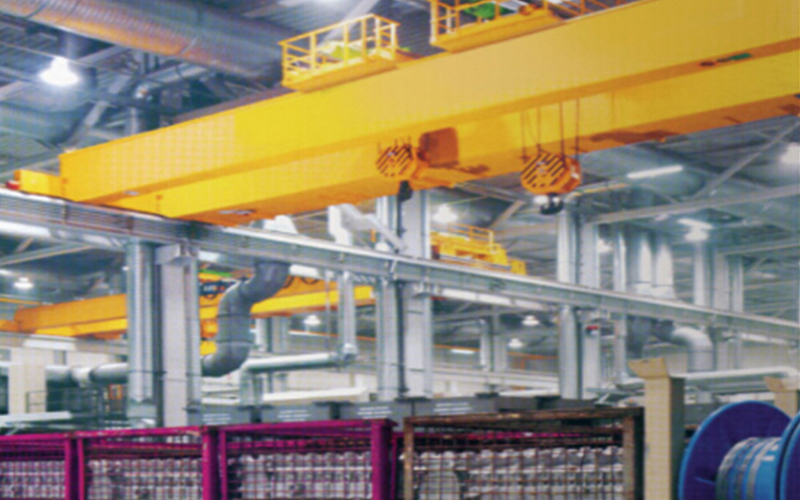

QE型通用橋式起重機

QE型通用橋式起重機依據GB/T14405-2011標準所設計、制造.該型號起重機是在QD型起重機基礎上設有兩臺起重小車，其可以單獨工作，也可以聯臺動作，適用于工礦企業車間及鐵路、港口碼頭等貨場吊運長件物品。
本產品起重量般為(2.5+2.5)t、(5+5)t、(10+10)t、(15+15)t、(20+20)t，跨度為7.5～31.5m，工作級別一般為A5～A6級，其主要特點基本與QD型產品相同．

????Different from QD crane QE overhead crane has two trolleys that can be drived respectively or together ,For that reason it can hoisl and convey long items in railway stations mines and steel plate worksnops,etc.

Performance data
Range of lifting load(2.5+2 .5)t、(5+5)t、(10+10)t、(15+15)t、(20+20)t、

Range of span 7.5～31.5 m

Allowed crane classification group A5～A6

The crane’s main features refer to those of QD model.

?
